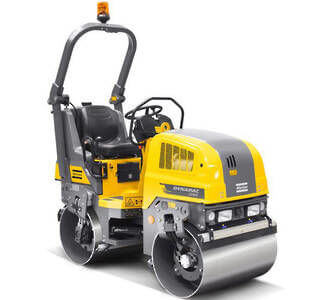

Dynapac Roller 1.7 ton

0022-16

The Dynapac 1.7 ton CC900 has a drum width of 900 mm it's primarily used for small-scale compaction work such as pavements, cycle paths, small roads and small parking areas. The large drum diameter and drive motors connected in series contributes to excellent accessibility and hill-climbing capacity. Propulsion and vibration on both drums. Please contact our friendly staff at Matko hire Warrnambool for more details if required.

(Transportation trailer privided)



Masses
Max. operating mass 1665 kg
Operating mass (incl. ROPS) 1600 kg
Module mass (front/rear) 750 kg/ 850 kg
Traction
Speed range (Dual/TC/AS) 0-9 km/h
Vertical oscillation ±13°
Theor. gradeability 40 %
Compaction
Centrifugal force 17 kN
Nominal amplitude 0.4 mm
Static linear load (front/rear) 8.3/ 9.4 kg/cm
Vibration frequency 70 Hz
Water tank 110 l
Engine
Manufacturer/Model Kubota D1105-E4B T4f
Type Water cooled diesel
Rated power, SAE J1995 18 kW (24 hp ) @ 2800 rpm
Fuel tank capacity 23 l
Alternative Engine
Manufacturer/Model
Rated power, SAE J1995
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement and servo. 2 radial piston motors with constant displacement.
Vibration Gear pump/motors with constant displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake
Failsafe brake in both drums.



Required Safety Wear
Face MaskSafety GlassesSafety HatEar ProtectionSafety BootsProtective Gloves
